Current Transformer
Our Range of Current Transformers
We manufacture and supply a complete range of low voltage current transformers engineered for accurate current measurement and reliable protection in electrical panels. Available in Tape Wound, Resin Cast and Encapsulated CT for Bus Bar constructions — suitable for every industrial, commercial and infrastructure application.

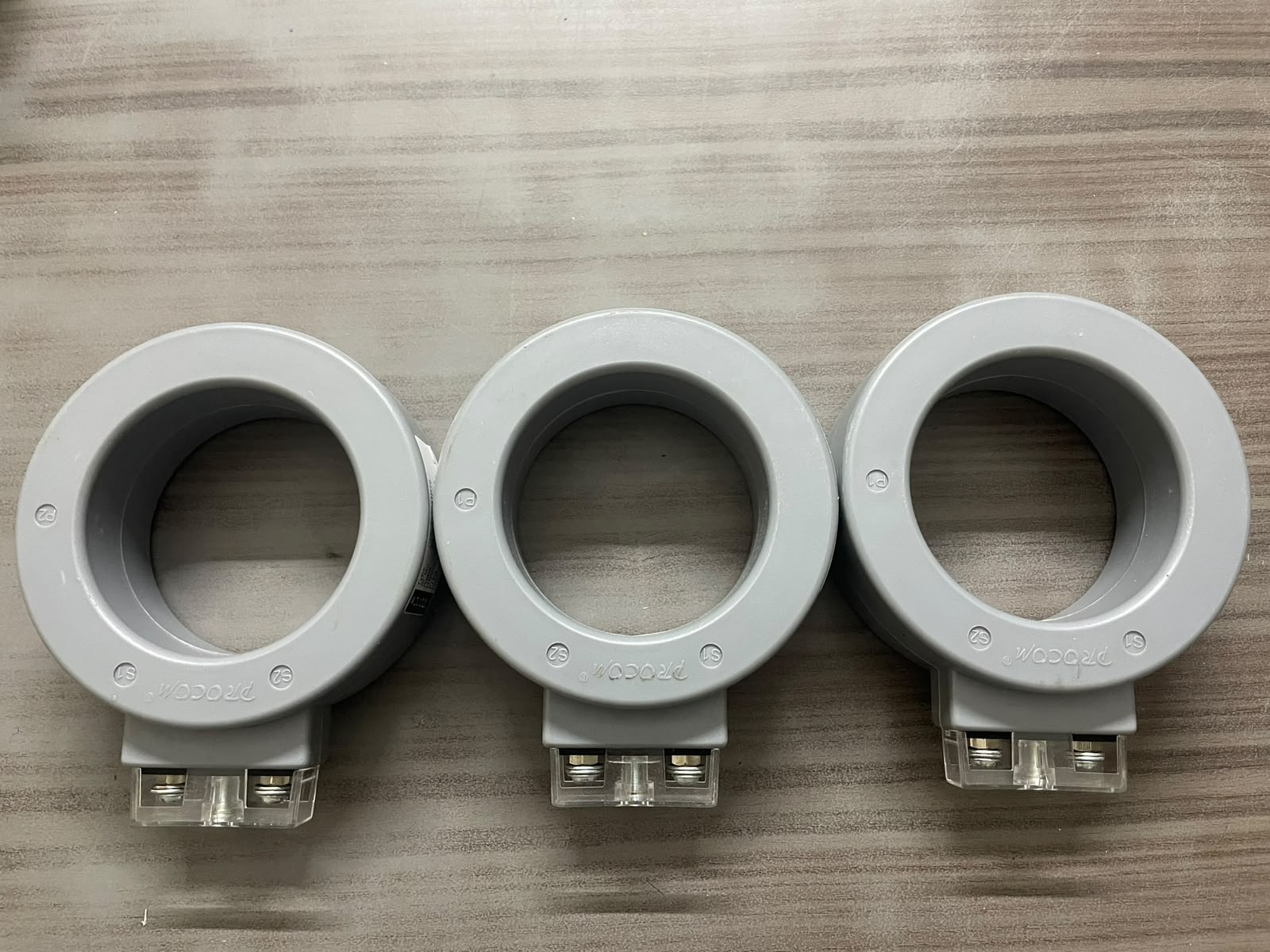

Tape Wound Current Transformer
The Tape Wound Current Transformer is a cost-effective and reliable solution for current measurement and metering applications. Its tape wound core construction provides consistent accuracy and stable performance across the rated current range.
- Tape wound toroidal core construction
- High accuracy for metering applications
- Compact and lightweight design
- Consistent performance across rated range
- Suitable for standard LT panels
| Parameter | Specification |
|---|---|
| Ratio | 100/5A to 600/5A |
| Accuracy Class | 1.0 / 0.5 |
| Burden | 5VA to 15VA |
| Construction | Tape Wound Toroidal Core |

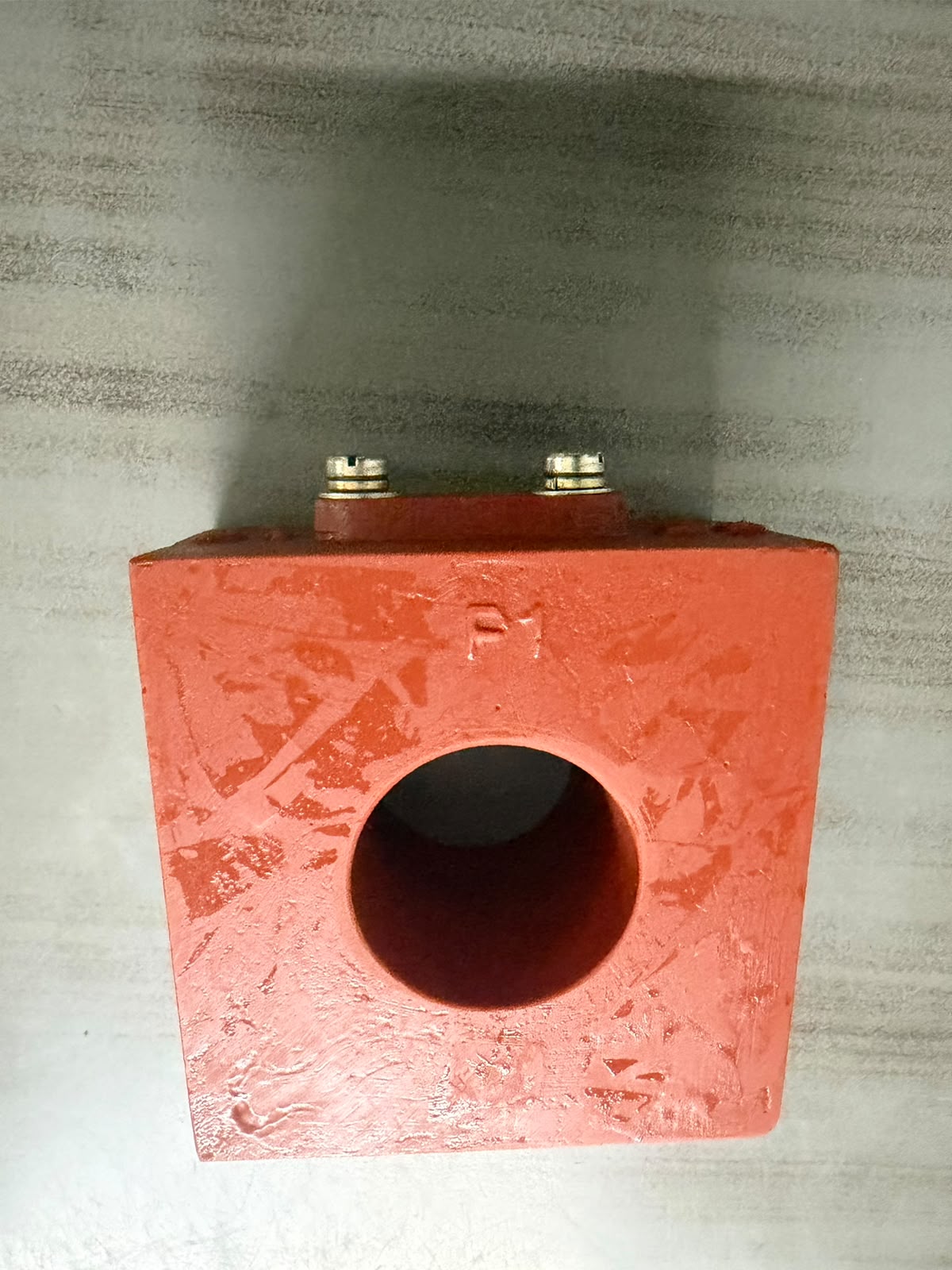

Resin Cast Current Transformer
The Resin Cast Current Transformer is fully encapsulated in epoxy resin, offering excellent insulation, mechanical strength and protection against dust and moisture. It is ideal for industrial panels where reliability and long service life are essential.
- Fully encapsulated epoxy resin body
- Excellent insulation and dielectric strength
- Dust and moisture resistant construction
- High mechanical strength
- Suitable for metering and protection
| Parameter | Specification |
|---|---|
| Ratio | 100/5A to 1000/5A |
| Accuracy Class | 1.0 / 0.5 / 0.2 |
| Burden | 5VA to 30VA |
| Construction | Epoxy Resin Cast |

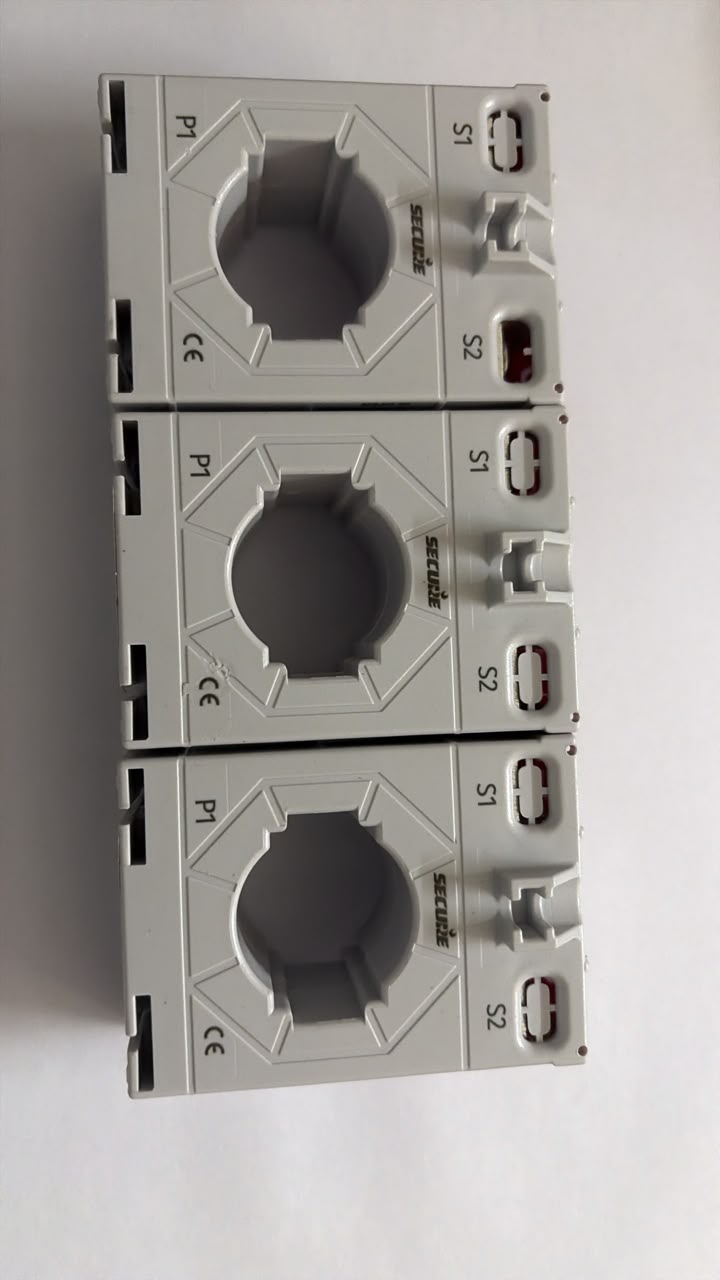

Encapsulated CT for Bus Bar
The Encapsulated CT for Bus Bar is designed for direct mounting on bus bars, providing accurate current measurement in compact panel spaces. Its encapsulated construction ensures superior insulation and reliable performance in high current applications.
- Designed for direct bus bar mounting
- Fully encapsulated insulation
- Compact footprint for tight panels
- Suitable for high current applications
- Easy installation and maintenance
| Parameter | Specification |
|---|---|
| Ratio | 200/5A to 2000/5A |
| Accuracy Class | 1.0 / 0.5 / 0.2 |
| Burden | 10VA to 30VA |
| Construction | Encapsulated for Bus Bar Mounting |
